Teenage engineering connections DIY printable cheat sheet

Waste less time messing with cables and running out of ports! Plan your Teenage Engineering setup. Five different layouts of reference worksheets showing all inputs/outputs for OP-1, OP-XY, TP-7, TX-6, OP-Z, EP series & Pocket Operators.

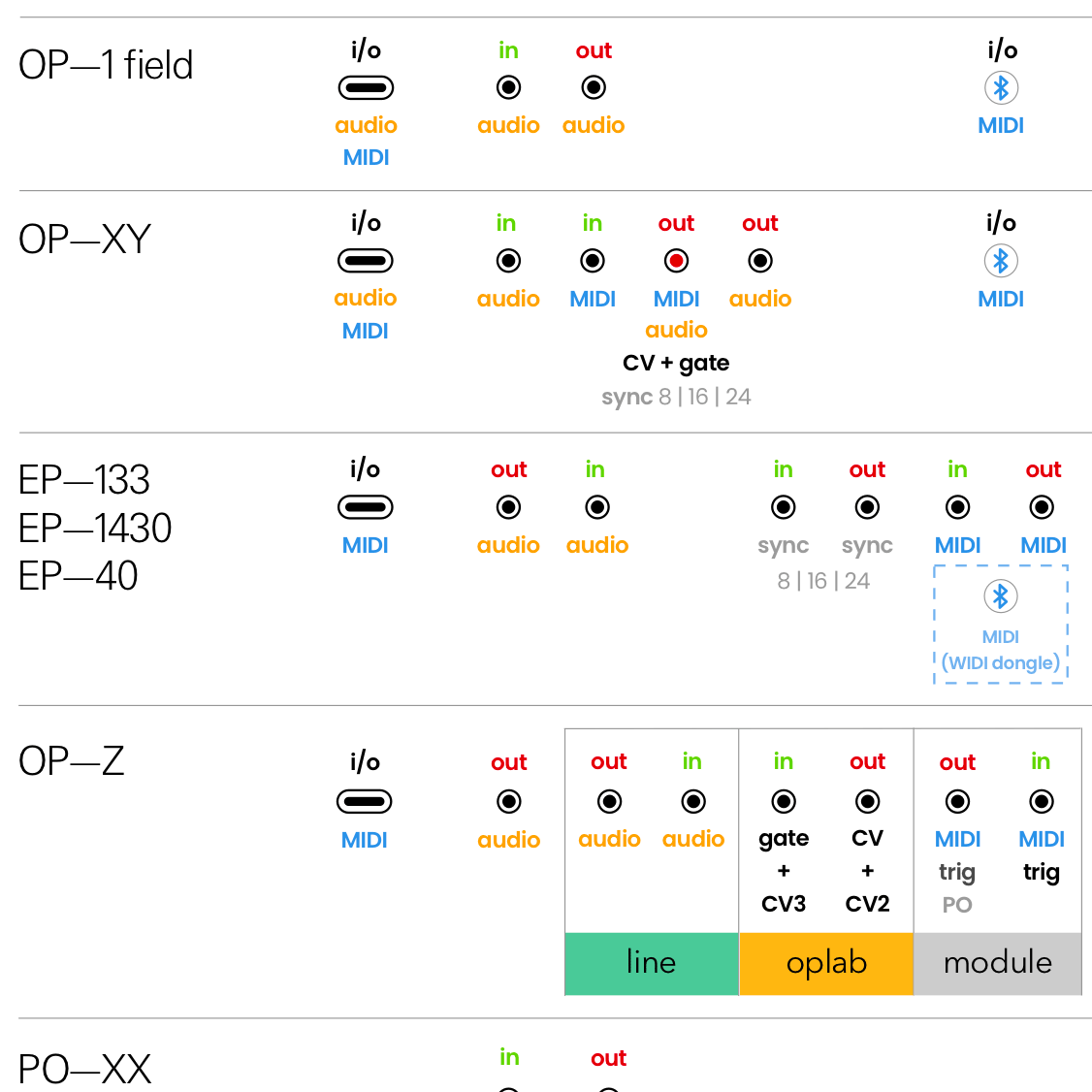

These pdfs include every input and output of every TE device on one page, including:
- TP-7
- TX- 6
- OP-1 field
- OP-XY
- OP-Z
- EP-133, EP-1320, EP-40
- Pocket Operator series

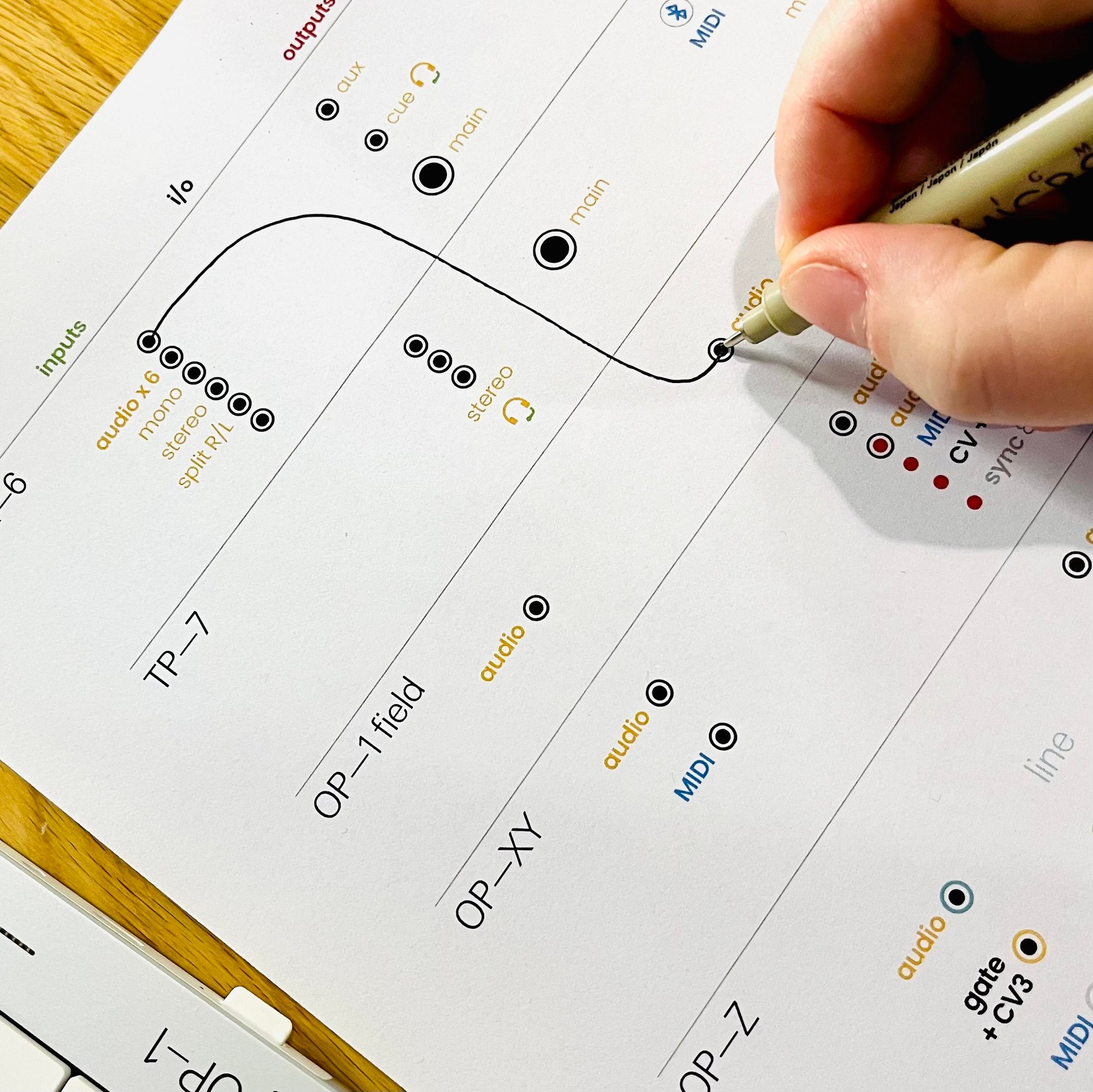

It shows these as you'd see them on the devices themselves, and also as a worksheet that you can print out to work out what device should connect to what and how. (Draw your connections directly on the sheet!)

(For example, the OP-1 field has MIDI via USB, but if you want to use it with the OP-XY it might make more sense for you to use Bluetooth MIDI and free up the USB port for something else.)

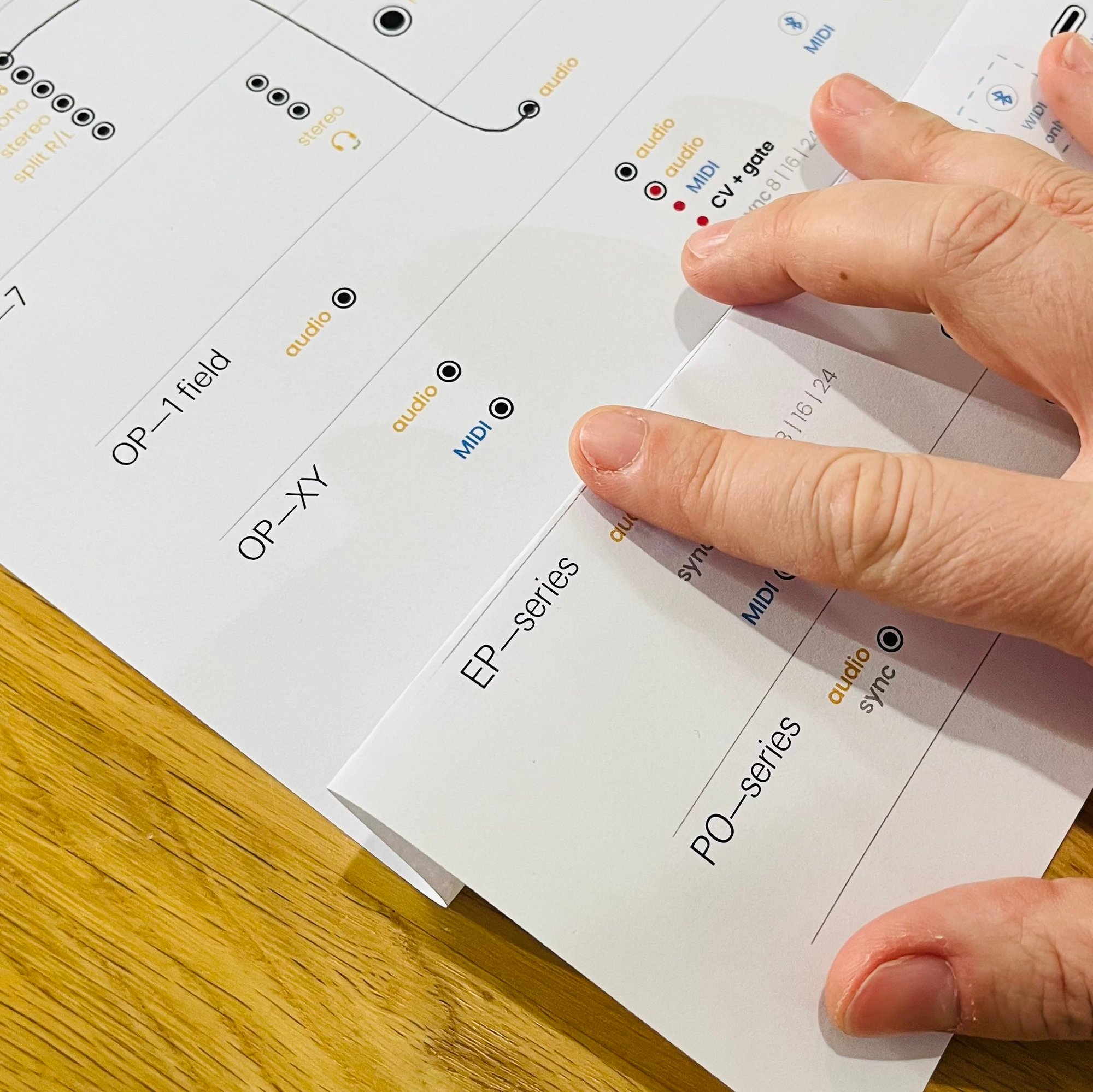

If there are devices you don't have or use, you can accordion fold them out of sight. (see pictures)
